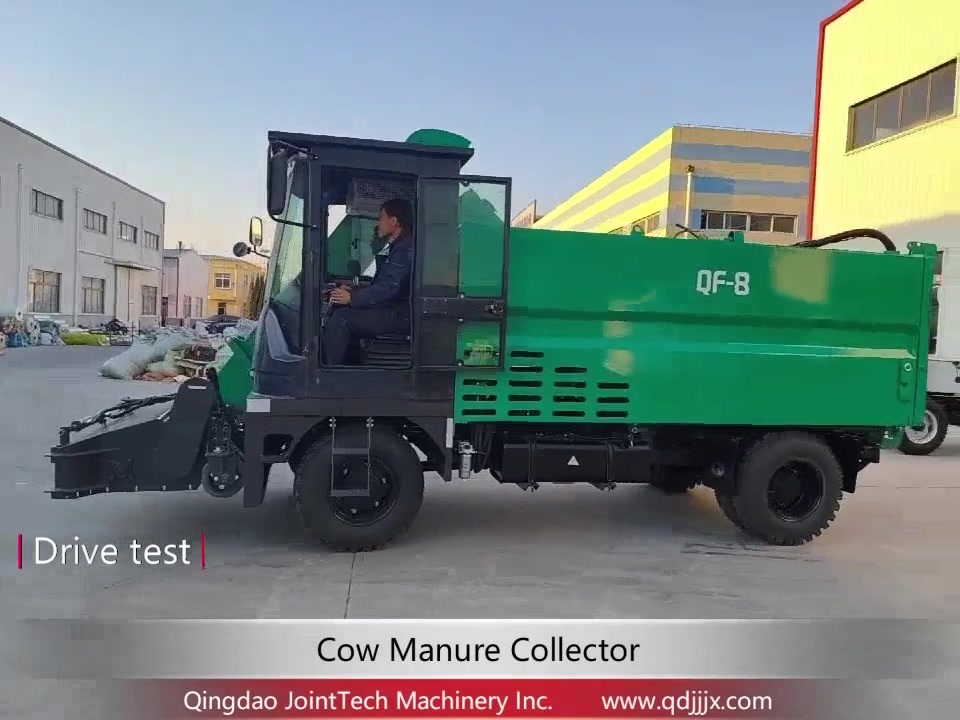

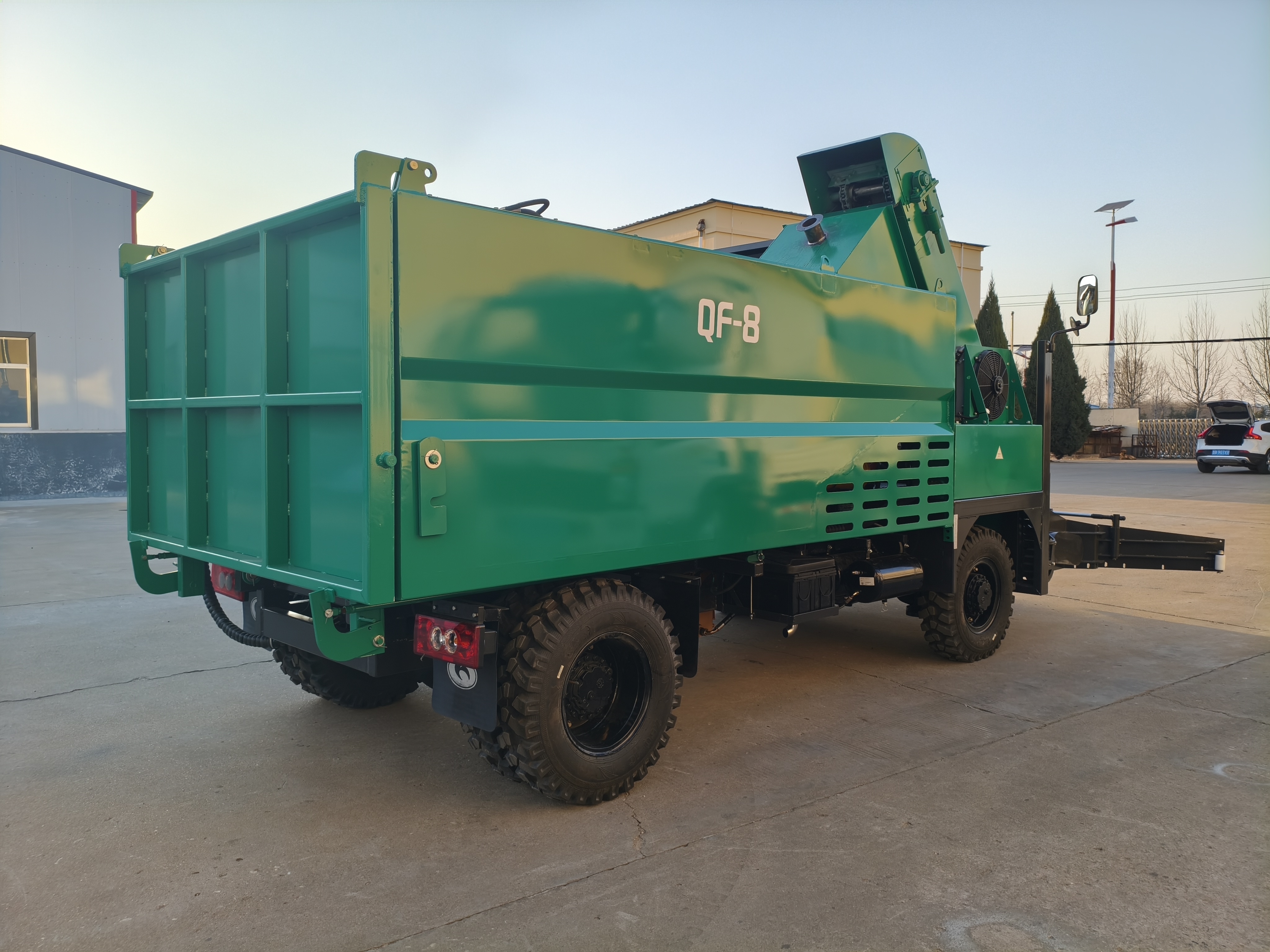

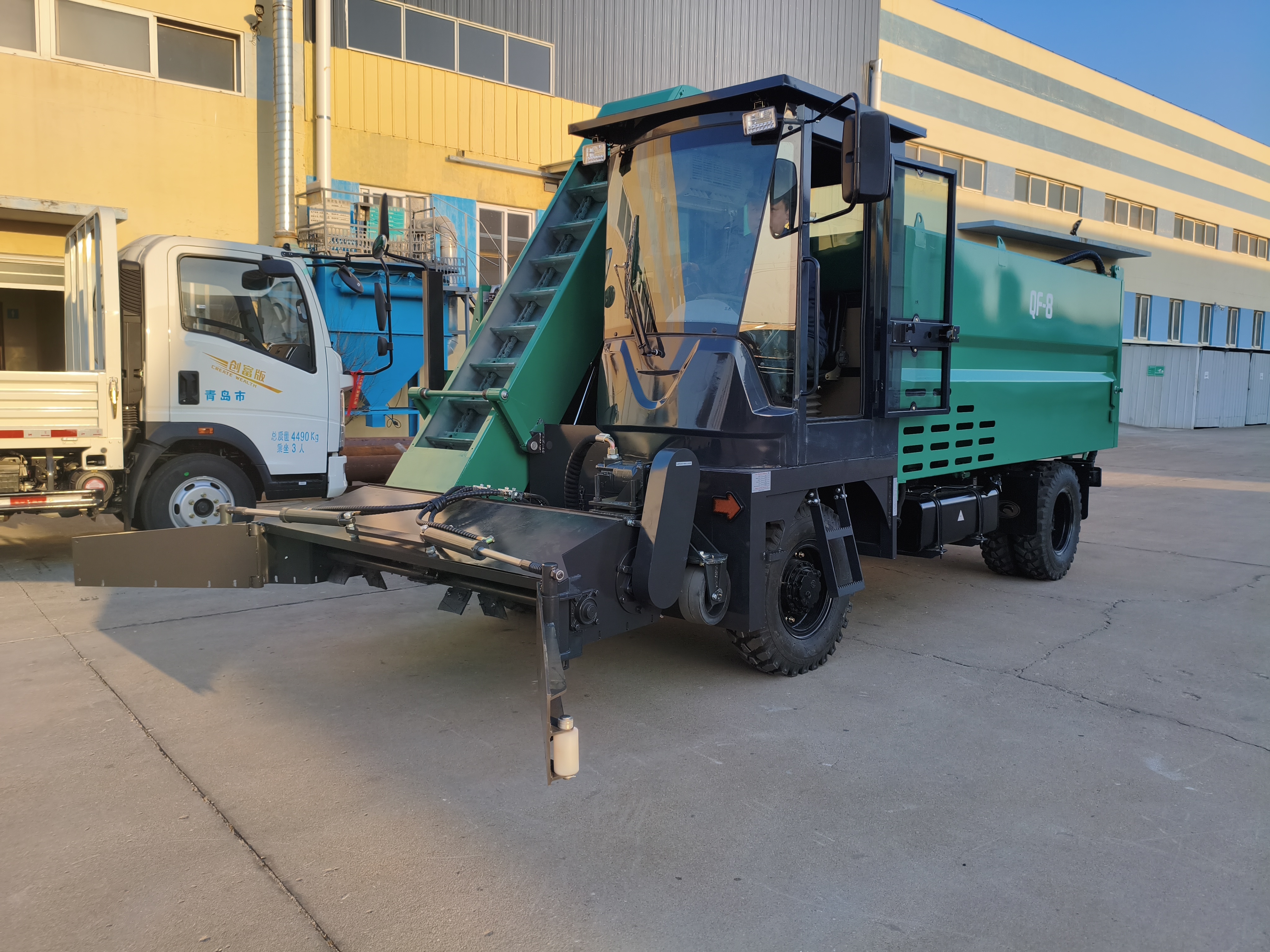

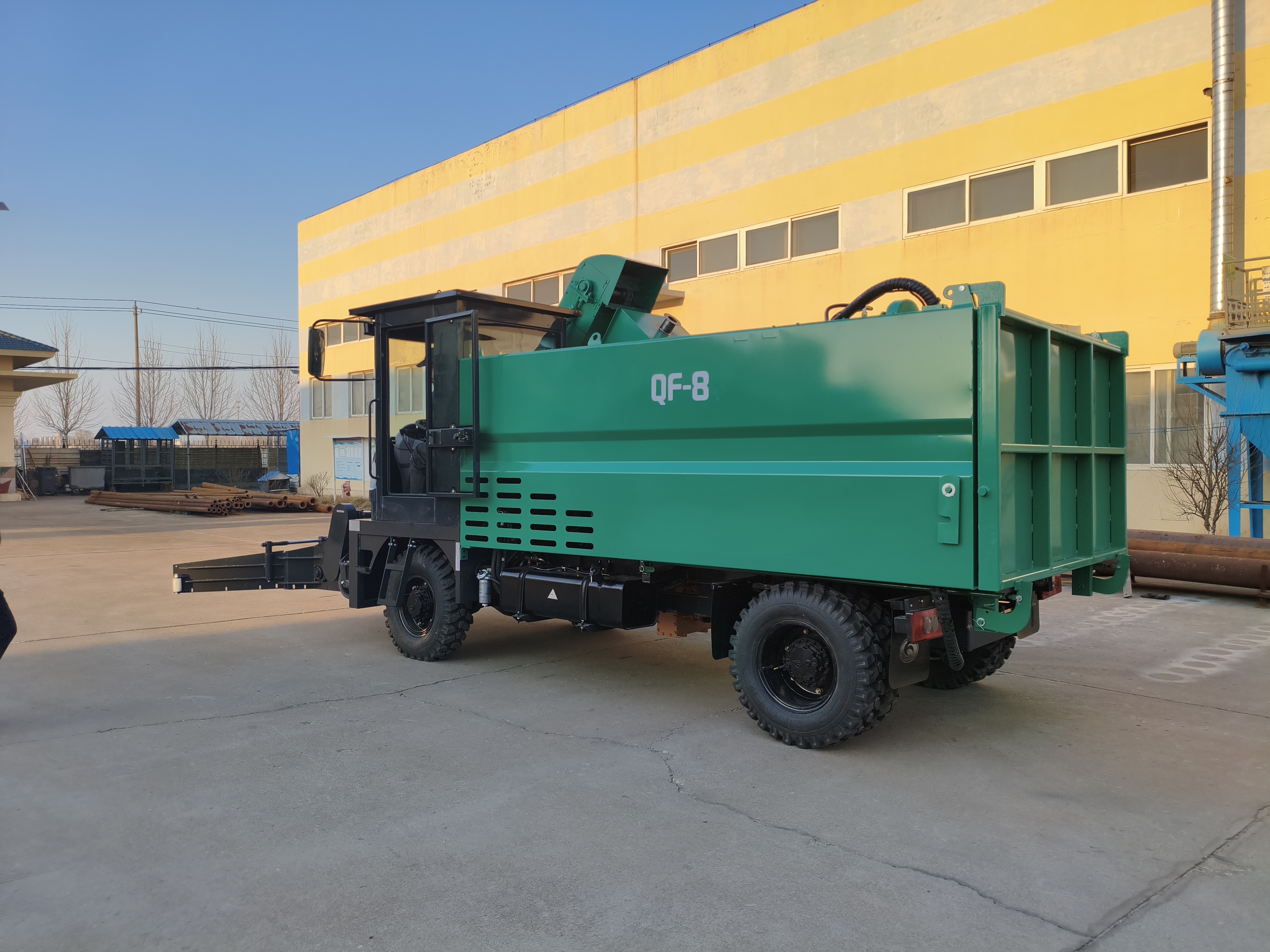

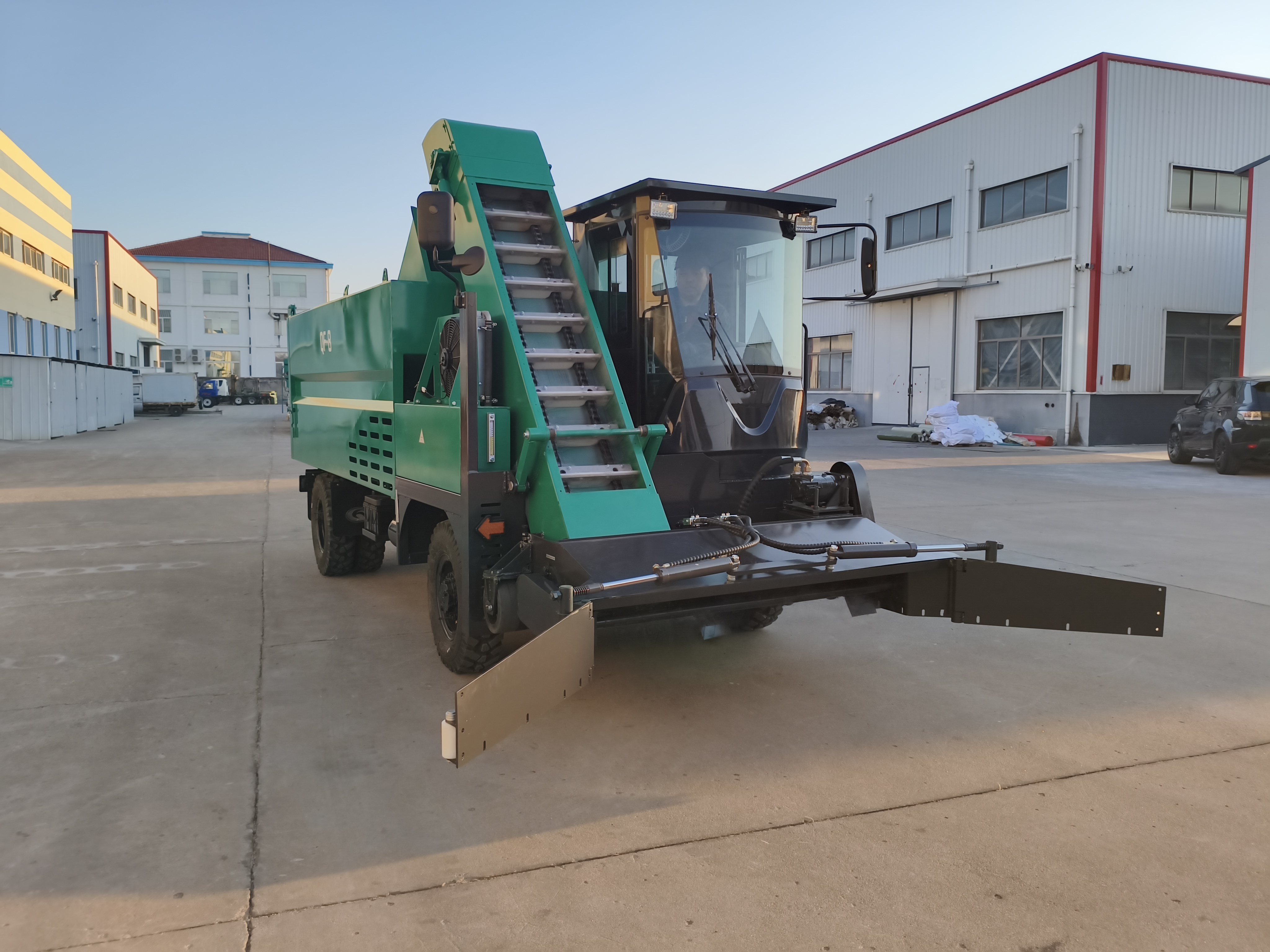

8m3 Cow Manure Collector

Category:

Cow Dung Cleaning Machine

Product Summary:

One machine can replace more than 3 sets of scraper, and no need to dig ditch and electricity investment. It can freely move to the corridor, crowded areas and activity fields,saving investment.With a powerful diesel engine.

Product message

Customized size according to your shed

Features：

Farmers are having hard time in maintaining the cow shed to clean the cow dung, they have to spend more time or they have to hire workers for more money. It is a tough job cleaning the huge dung of so many cows every day.While interacting with the dairy farmer, we came to know that there was always shortage of manpower due to the nature of work involved.This motivated make us to work on developing a machine to remove and collect cow dung without any physical contact.
The manure collector machine is made of Q345B material,which is the most durable steel,it is assembled from the frame and the rear bucket. The engine is driven by the diesel engine. The manure collector machine is used for collect cow and cattle's dung/manure in livestock farms. Function:Removal the cow or beef cattle's dung.and trasport the dung to some place you need. The Capacity range is customized from 3 m3 to 17 m3.

Specification:

Item	4m3	8m3	10m3	13m3
Model	QF-4	QF-8	QF-10	QF-13
LWH（cm）	520210250	580220250	600220260	620230260
Material	4mm thickness Q345B Steel
Motor Model Power	YUNNEI 4100 70 hp	YUNNEI 4102T 120 hp	YUNNEI 4108 136 hp	YUNNEI 4108T 145 hp
Max Load(Kg)	3,000	7,000	9,000	12,000

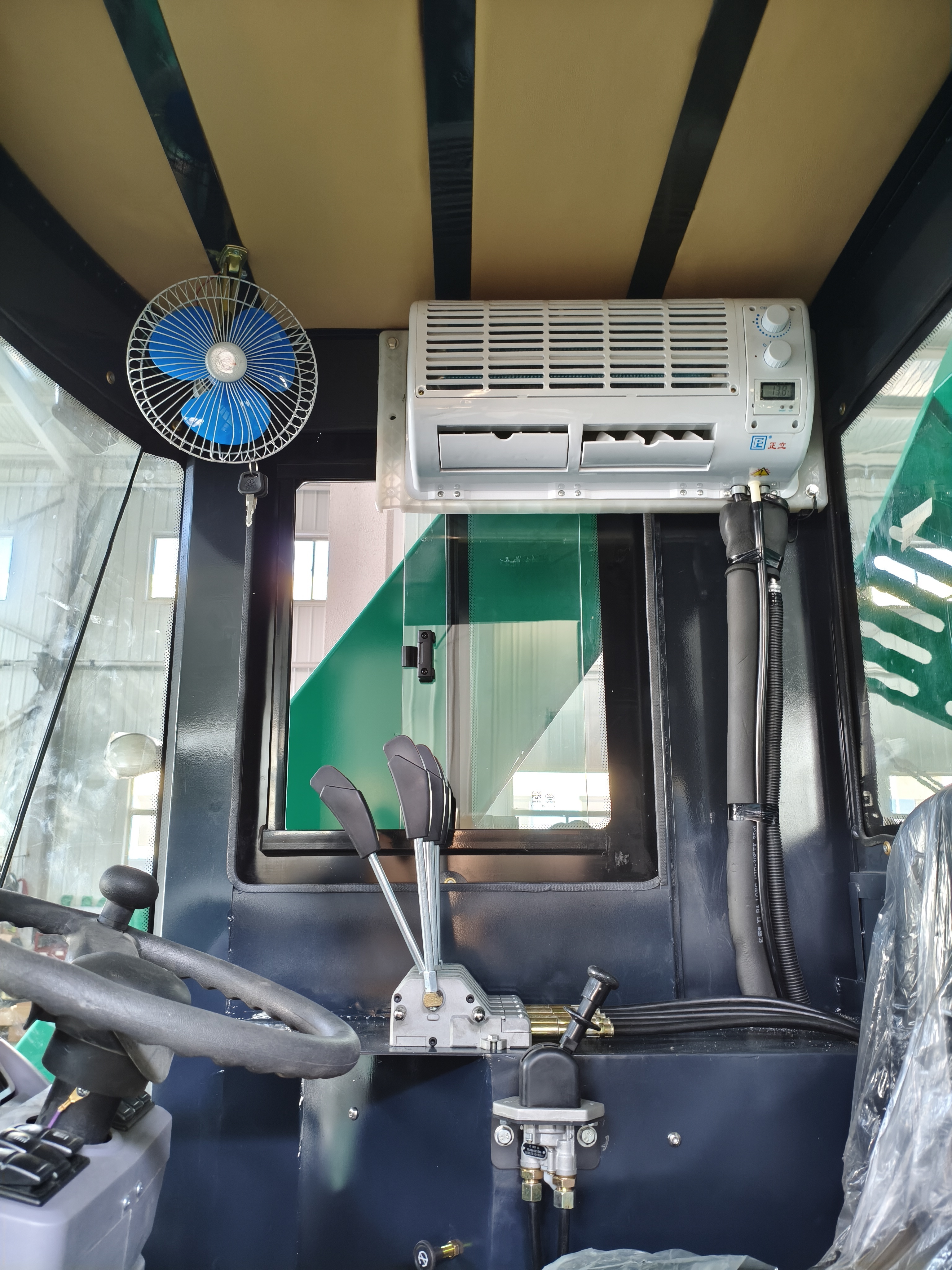

Valve operation method	Manual pull line remote control valve

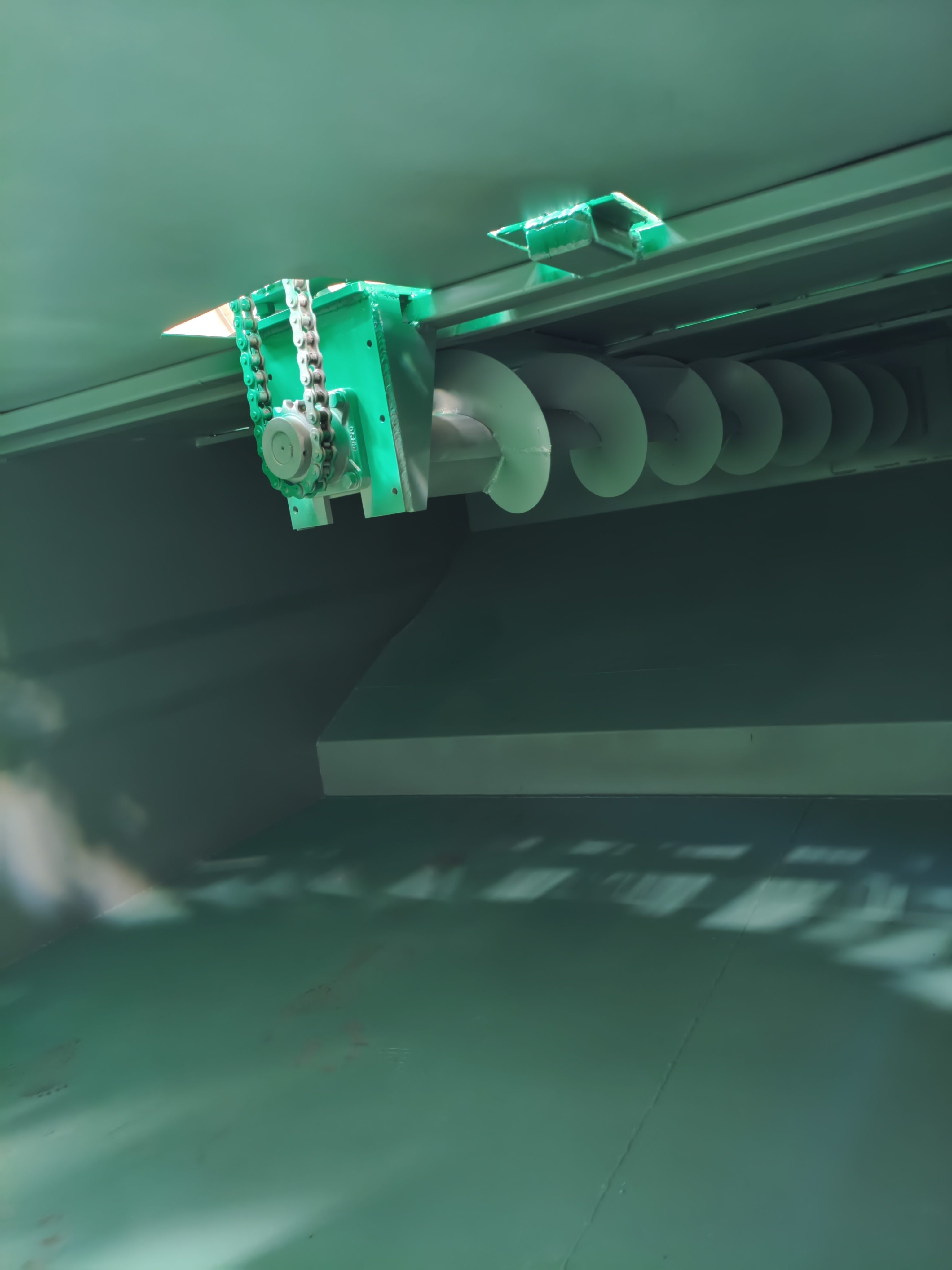

Collect System	Auger collect,Scraper and chain transmission
Discharge System	Two hydraulic jacks, automatic discharge without physical contact
Gear	Continuously VariableTransmission
